OpenSearch for SREs: The Open-Source Observability Powerhouse on Kubernetes

joaquinjimenezgarcia — Sun, 08 Feb 2026 18:54:11 +0000

The Rise of the Open-Source Alternative: OpenSearch for the Modern SRE

In the dynamic world of cloud-native infrastructure, robust observability is not just a nice-to-have; it’s a foundational requirement for any Site Reliability Engineer (SRE). For years, Elasticsearch dominated the landscape for log aggregation and search. However, a significant licensing change by Elastic in early 2021 created a void, prompting AWS to fork the last Apache 2.0 licensed version and launch OpenSearch.

What is OpenSearch? At its core, OpenSearch is a distributed, RESTful search and analytics engine built on Apache Lucene. It’s designed for high-volume data ingestion and rapid querying across massive datasets. Think of it as a specialized database for semi-structured data like logs, metrics, and traces.

Why is its open-source nature important for SREs? The “open” in OpenSearch isn’t just a marketing buzzword; it’s critical for SREs:

No Vendor Lock-in: You’re free from proprietary licenses and sudden feature restrictions. This gives you long-term stability and predictability in your tech stack.
Community-Driven Development: Bugs are squashed faster, features are added based on broad community needs, and you can even contribute fixes yourself.
Auditability & Transparency: You can inspect the source code, understand exactly how your data is being handled, and ensure there are no hidden surprises—crucial for security-conscious environments.
Cost Predictability: While managed services exist, you always have the option to self-host without escalating license costs as your data grows.

For an SRE, OpenSearch provides the backbone for what’s often called the “OSD Stack” (OpenSearch, OpenSearch Dashboards, and Data Prepper/Fluent Bit), empowering proactive monitoring, rapid incident response, and deep operational insights.

Core Concepts for the SRE Toolkit

To wield OpenSearch effectively, you need to understand its fundamental building blocks:

Cluster & Nodes:
- An OpenSearch Cluster is a group of interconnected servers (nodes) that work together to store and search your data.
- Nodes specialize: some are cluster_manager (formerly “master”) nodes (brains for cluster state), others are data nodes (muscles for storing and searching data), and some can be ingest nodes (for pre-processing data). SREs design clusters with dedicated nodes for stability and scale.
Indices & Documents:
- An Index is like a logical database table, a collection of related JSON documents. For logs, you typically create time-based indices (e.g., application-logs-2026.02.08).
- A Document is a single JSON record within an index—e.g., one log line, one metric data point, one trace span.
Shards & Replicas:
- To handle massive data, OpenSearch horizontally scales using Shards. An index is split into primary shards, distributed across data nodes.
- Replicas are copies of primary shards. They provide high availability (if a node fails, a replica becomes primary) and scale read operations. SREs fine-tune shard/replica counts for performance and resilience.
OpenSearch Dashboards:
- The browser-based UI for visualizing, analyzing, and managing your OpenSearch data. It’s where you build dashboards, run queries, and configure alerts.
Index State Management (ISM):
- An automated policy engine. SREs use ISM to define lifecycle rules for indices, like moving old data to cheaper storage, taking snapshots, or deleting it after a set period. This prevents disk exhaustion and controls costs.

Getting Hands-On: Your Production-Lite OpenSearch Lab on Kubernetes

The best way to understand OpenSearch is to run it. We’ll set up a mini-stack on Minikube (or any Kubernetes cluster) that mirrors a production setup for logs:

OpenSearch Cluster: The data store.
OpenSearch Dashboards: The UI.
Nginx: A sample application generating logs.
Fluent Bit: The lightweight log shipper.

All configurations will be declarative, using Helm charts and Kubernetes Jobs, making it fully automated and version-controllable—true SRE style.

Prerequisites:

Kubernetes cluster (Minikube recommended for local dev)
kubectl installed and configured
helm installed

1. Initialize Minikube

Ensure your Minikube has enough resources for OpenSearch:

minikube start --cpus 4 --memory 8192 --driver docker

2. Prepare Helm Repositories

helm repo add opensearch https://opensearch-project.github.io/helm-charts/
helm repo add fluent https://fluent.github.io/helm-charts
helm repo update

3. Deploy OpenSearch & Dashboards (with a Password)

We’ll use a values.yaml file to set up a single-node OpenSearch cluster with a secure admin password and OpenSearch Dashboards.

Save the following as opensearch-values.yaml:

# opensearch-values.yaml
singleNode: true
persistence:
  enabled: false # For a lab, we'll keep it stateless. Set to true for production with PVs.
extraEnvs:
  - name: OPENSEARCH_INITIAL_ADMIN_PASSWORD
    value: YourStrongPassword123! # <<< CHANGE THIS TO A STRONG PASSWORD

Now deploy:

helm install my-os opensearch/opensearch -f opensearch-values.yaml
helm install my-dashboards opensearch/opensearch-dashboards

Note: OpenSearch will take a few minutes to start as it initializes its JVM and security plugin. Keep an eye on kubectl get pods -w.

4. Deploy Sample Nginx App

This is our log source:

kubectl create deployment nginx-server --image=nginx
kubectl expose deployment nginx-server --port=80

5. Deploy Fluent Bit (The Log Shipper)

Fluent Bit will scrape Nginx logs and send them to OpenSearch. We’ll use a fluent-bit-values.yaml to handle the configuration declaratively and resolve common SRE headaches (DNS, auth, mapping issues).

Save the following as fluent-bit-values.yaml:

# fluent-bit-values.yaml
config:
  service: |
    [SERVICE]
        Daemon          Off
        Flush           1
        Log_Level       info
        Parsers_File    parsers.conf
        HTTP_Server     On
        HTTP_Listen     0.0.0.0
        HTTP_Port       2020
        Health_Check    On

  inputs: |
    [INPUT]
        Name           tail
        Path           /var/log/containers/*.log
        multiline.parser docker, cri
        Tag            kube.*
        Mem_Buf_Limit  5MB
        Skip_Long_Lines On

  filters: |
    [FILTER]
        Name                kubernetes
        Match               kube.*
        Kube_URL            https://kubernetes.default.svc:443
        Kube_CA_File        /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
        Kube_Token_File     /var/run/secrets/kubernetes.io/serviceaccount/token
        Kube_Tag_Prefix     kube.var.log.containers.
        Merge_Log           On
        Merge_Log_Key       log_processed
        Keep_Log            Off
        # These help prevent mapping conflicts from inconsistent pod labels
        Labels              Off
        Annotations         Off

  outputs: |
    [OUTPUT]
        Name            es
        Match           *
        Host            my-os-opensearch # This is the Kubernetes Service name for OpenSearch
        Port            9200
        HTTP_User       admin
        HTTP_Passwd     YourStrongPassword123! # <<< USE THE SAME PASSWORD AS ABOVE
        Logstash_Format On
        Logstash_Prefix nginx-logs
        tls             On
        tls.verify      Off
        Suppress_Type_Name On # Crucial for OpenSearch 2.x
        Trace_Error        On # For better debugging in Fluent Bit logs

Deploy Fluent Bit:

helm install fluent-bit fluent/fluent-bit -f fluent-bit-values.yaml

The Log Shipper: Why Fluent Bit?

In a Kubernetes ecosystem, logs are ephemeral—when a pod dies, its logs go with it. To prevent this, we need a DaemonSet that acts as a “log vacuum.” We chose Fluent Bit because it’s the lightweight, high-performance cousin of Fluentd. It has a tiny memory footprint (crucial when you’re running it on every node in a cluster) and handles the “Log Pipeline” in three distinct stages:

Input (Tail): It watches the raw .log files created by the Kubernetes container engine on the node’s disk.
Filters (Kubernetes): This is the “SRE secret sauce.” Fluent Bit talks to the Kubernetes API to enrich your logs with metadata like the Pod Name, Namespace, and Labels. We’ve also added logic here to “clean” the logs to prevent mapping conflicts.
Output (OpenSearch): It batches the logs and ships them securely via HTTPS to our OpenSearch cluster.

The Anatomy of a Fluent Bit Pipeline

When you look at a Fluent Bit configuration, it’s organized into distinct sections. Each one has a specific job in the “Ingestion Lifecycle.” Understanding these is the key to onboarding any new service into OpenSearch.

[SERVICE] (The Global Brain): This section defines the engine’s behavior. It controls how often data is “flushed” (sent) to the destination, where the internal logs go, and whether to enable a health-check server. For SREs, this is where we tune performance and monitoring for the log shipper itself.
[INPUT] (The Collector): This is the “vacuum cleaner.” It tells Fluent Bit where to get data. In Kubernetes, we usually use the tail input to follow the log files generated by the container runtime (CRI/Docker). You can have multiple inputs—one for system logs, one for app logs, and even one for metrics.
[FILTER] (The Processor): This is where the magic happens. Filters allow you to modify data in flight.
- The Kubernetes Filter is the most popular; it reaches out to the K8s API to tag your logs with pod names and namespaces.
- You can also use filters to drop sensitive data (PII), parse strings into JSON, or “flatten” complex labels to avoid the mapping conflicts we saw earlier.
[OUTPUT] (The Destination): This defines the “Exit” for your data. In our case, it’s the es (Elasticsearch/OpenSearch) plugin. This section handles the connection details, authentication, and index naming conventions.

6. Automate ISM Policy & Index Pattern with a Kubernetes Job

This is where the SRE magic happens. We’ll use a Job to apply our ISM policy (7-day retention) and create the nginx-logs-* index pattern in Dashboards, all via API calls.

Save the following as observability-setup-job.yaml:

# observability-setup-job.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: opensearch-sre-setup-script
data:
  setup.sh: |
    #!/bin/bash
    set -euo pipefail

    OPENSEARCH_USER="admin"
    OPENSEARCH_PASSWORD="YourStrongPassword123!" # <<< USE THE SAME PASSWORD
    DASHBOARDS_URL="http://my-dashboards-opensearch-dashboards.default.svc.cluster.local:5601"
    OPENSEARCH_URL="https://my-os-opensearch.default.svc.cluster.local:9200"

    echo "Waiting for OpenSearch Dashboards to be available..."
    until curl -s -u "$OPENSEARCH_USER:$OPENSEARCH_PASSWORD" -k "$DASHBOARDS_URL/api/status" | grep -q "available"; do
      sleep 5
    done
    echo "OpenSearch Dashboards is available."

    echo "Creating ISM policy: nginx_retention..."
    curl -X PUT "$OPENSEARCH_URL/_plugins/_ism/policies/nginx_retention" \
      -u "$OPENSEARCH_USER:$OPENSEARCH_PASSWORD" -k -H "Content-Type: application/json" \
      -d '{
            "policy": {
              "description": "Delete logs after 7 days",
              "default_state": "hot",
              "states": [
                {
                  "name": "hot",
                  "actions": [],
                  "transitions": [
                    {
                      "state_name": "delete",
                      "conditions": { "min_index_age": "7d" }
                    }
                  ]
                },
                {
                  "name": "delete",
                  "actions": [ { "delete": {} } ],
                  "transitions": []
                }
              ],
              "ism_template": [
                {
                  "index_patterns": ["nginx-logs-*"],
                  "priority": 100
                }
              ]
            }
          }'
    echo "ISM policy created."

    echo "Creating OpenSearch Dashboards Index Pattern: nginx-logs-pattern..."
    curl -X POST "$DASHBOARDS_URL/api/saved_objects/index-pattern/nginx-logs-pattern" \
      -u "$OPENSEARCH_USER:$OPENSEARCH_PASSWORD" -H "osd-xsrf: true" -H "Content-Type: application/json" \
      -d '{
            "attributes": {
              "title": "nginx-logs-*",
              "timeFieldName": "@timestamp"
            }
          }'
    echo "Index pattern created."

---
apiVersion: batch/v1
kind: Job
metadata:
  name: opensearch-observability-setup
spec:
  template:
    spec:
      containers:
      - name: setup-runner
        image: curlimages/curl:latest # A lightweight image with curl and bash
        command: ["bash", "/scripts/setup.sh"]
        volumeMounts:
        - name: setup-script
          mountPath: /scripts
      volumes:
      - name: setup-script
        configMap:
          name: opensearch-sre-setup-script
          defaultMode: 0744 # Make the script executable
      restartPolicy: OnFailure

Apply the setup Job:

kubectl apply -f observability-setup-job.yaml

Understanding the Automation: ISM & Index Patterns

Before we fire off the job, let’s talk about what’s happening under the hood. We aren’t just pushing config; we are defining the lifecycle and visibility of our data.

ISM (Index State Management): In a production cluster, logs are a “growing fire.” If you don’t manage them, they will eventually eat your disk and crash your nodes. By defining an ISM Policy, we automate the “Hot-to-Delete” lifecycle. In this setup, we’re telling OpenSearch: “Keep these logs fresh for 7 days, then delete them automatically.” No manual cleanup, no 3 AM disk-space alerts.
Index Patterns: While the Index is where the data lives, the Index Pattern is the “Lens” used by OpenSearch Dashboards to see it. By creating this via code, we ensure that as soon as the stack is up, your Discover tab is ready to go. We’re essentially “gluing” all those daily daily nginx-logs-* into one continuous timeline so you can query across multiple days without lifting a finger.

7. Generate Some Nginx Traffic

To see logs, your Nginx server needs visitors:

kubectl run load-gen --image=busybox --restart=Never -- /bin/sh -c "while true; do wget -qO- http://nginx-server; sleep 2; done"

8. Access OpenSearch Dashboards

Port-forward Dashboards to your local machine:

kubectl port-forward svc/my-dashboards-opensearch-dashboards 5601:5601

Then, open https://localhost:5601 in your browser. Log in with admin and your chosen password. Go to the “Discover” tab, select nginx-logs-* in the dropdown, set your time range (e.g., “Last 15 minutes”), and watch your logs flow in!

Conclusion

By following this automated approach, you’ve built a robust, observable, and easily reproducible log aggregation stack with OpenSearch. You’ve tackled critical SRE challenges like security, data ingestion, and lifecycle management—all as code. This hands-on experience forms a solid foundation for further exploration into metrics, traces, and advanced alerting in your cloud-native environments.

What other OpenSearch challenges will you automate next?

See the whole code at my repository

La entrada OpenSearch for SREs: The Open-Source Observability Powerhouse on Kubernetes se publicó primero en CloudArch.

Introduction to KEDA: Event-Driven Autoscaling for Kubernetes

joaquinjimenezgarcia — Sun, 07 Dec 2025 20:12:58 +0000

When building applications in Kubernetes, one of the most important challenges is efficiently managing workloads. You want your services to scale up when demand spikes, and scale down (even to zero) when idle, to save resources and reduce costs. This is especially critical in production environments where traffic can be unpredictable.

This is where KEDA (Kubernetes Event-Driven Autoscaling) comes in. KEDA is a lightweight, open-source component that integrates with Kubernetes to provide event-driven autoscaling. Unlike traditional Horizontal Pod Autoscalers (HPAs) that only scale based on CPU or memory usage, KEDA can scale your workloads based on external metrics or events, such as:

Messages in a queue (Redis, RabbitMQ, Azure Service Bus, etc.)
Jobs waiting in Kafka topics
Custom metrics from Prometheus
Database triggers or cloud events

With KEDA, your applications can react instantly to real-world workloads without over-provisioning resources. It allows you to run microservices cost-effectively while maintaining responsiveness.

What we are building

In this guide, we’ll build a realistic event-driven microservice that processes jobs from a Redis queue. The scenario mirrors what many production systems face:

A backend service receives tasks (e.g., image processing, notifications, or data ingestion) and pushes them into a Redis queue.
Worker pods consume tasks from the queue.
KEDA monitors the queue and scales the number of worker pods up or down depending on the number of pending tasks.

By the end of this guide, you will have:

A working Minikube cluster with KEDA installed
A Redis-backed job queue
A worker deployment that automatically scales according to queue length
Complete YAML manifests and a test workflow to simulate real production traffic

This project is valuable because it lets you experience a real-world autoscaling scenario. Most production systems have unpredictable workloads, and learning how KEDA responds to events gives you a deep understanding of:

Event-driven design patterns
How Kubernetes interacts with external triggers
Autoscaling strategies beyond CPU/memory metrics

Even if your real application is more complex (with multiple queues or different event sources), this example provides a solid foundation to implement production-ready, cost-efficient, and resilient services.

What you’ll learn:

Start a 3‑node Minikube cluster (if not started)
Install Helm (if needed)
Install KEDA with Helm
Deploy Redis (simple single‑replica) and a worker Deployment that consumes jobs
Create a ScaledObject that uses the Redis List scaler
Create a producer CronJob that pushes items into the Redis list to simulate load
Observe scaling behavior and clean up

Prerequisites

Make sure you have the following locally installed and working on your machine:

kubectl (compatible with your Minikube Kubernetes version)
minikube (we will use it to run a 3‑node local cluster)
helm (Helm 3)
docker (or your container runtime used by Minikube driver)

If any of those are missing, install them first. For example on Debian/Ubuntu: sudo snap install kubectl –classic (or use your distro’s package manager). I will not assume any particular OS beyond these tools being available.

Start a 3-node Minikube cluster

# Start minikube with 3 nodes (one control-plane + 2 workers), adjust memory/
CPUs if needed
$ minikube start --nodes=3 --driver=docker --memory=4096 --cpus=2

# Verify nodes come up
$ kubectl get nodes

Notes: –nodes=3 creates 1 control-plane and 2 worker nodes by default. If you already have the cluster running, skip the minikube start step. Make sure kubectl context points to your minikube cluster: kubectl config current-context .

Install Helm

This command will install Helm for you in your local machine. Please, refer to this other post if you wanna learn more about it.

# Add KEDA Helm repo and update
helm repo add kedacore https://kedacore.github.io/charts
helm repo update

# Install KEDA into namespace 'keda'
helm install keda kedacore/keda --namespace keda --create-namespace

# Wait for KEDA pods to become ready
kubectl -n keda get pods

Why Helm? Helm is the easiest official way to install KEDA and its CRDs. KEDA installs CRDs that are required for ScaledObject and ScaledJob resources.

What we’re going to deploy (high level)

redis-deployment.yaml — a simple Redis single‑pod deployment + service to be able to access it from other pods
worker-deployment.yaml — a small Python worker Deployment that polls job-queue (a Redis list) and processes items, initially it will have 0 replics since it will imitate a job that doesn’t need to be running always
producer-cronjob.yaml — a CronJob that pushes messages into Redis periodically to generate load
scaledobject-redis.yaml — KEDA ScaledObject definition that scales worker based on Redis list length

I’ll explain each file before showing it. All manifests are designed to run in the default namespace for simplicity. You can change namespace fields if you prefer.

Redis Manifest

# redis-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: redis
  labels:
    app: redis
spec:
  replicas: 1
  selector:
    matchLabels:
      app: redis
  template:
    metadata:
      labels:
        app: redis
    spec:
      containers:
      - name: redis
        image: redis:7.0-alpine
        ports:
        - containerPort: 6379
        resources:
          requests:
            cpu: "100m"
            memory: "128Mi"
          limits:
            cpu: "250m"
            memory: "256Mi"
---
apiVersion: v1
kind: Service
metadata:
  name: redis
  labels:
    app: redis
spec:
  ports:
  - port: 6379
    targetPort: 6379
    protocol: TCP
  selector:
    app: redis
  type: ClusterIP

As we should know already, we are gonna deploy this in our cluster with:

kubectl apply -f redis-deployment.yaml

To be sure the redis service is client, we can test the connectivity with a redis client:

kubectl run -i --tty redis-client --image=redis:7.0-alpine --restart=Never
-- sh
# inside pod shell run: redis-cli -h redis ping
# should reply PONG

Worker code + Deployment

We’ll create a tiny Python worker that continuously polls a Redis list (named job-queue ) with BRPOP and “processes” messages (here, just sleep and echo ). Just to replicate some functionality of reading from Redis. The purpouse of this guide is not the logic of the code itself but it’s realibility on production environments.

In real life your worker would do meaningful job processing.

# worker.py
import time
import os
import redis


REDIS_HOST = os.getenv('REDIS_HOST', 'redis')
REDIS_PORT = int(os.getenv('REDIS_PORT', '6379'))
LIST_NAME = os.getenv('LIST_NAME', 'job-queue')


r = redis.Redis(host=REDIS_HOST, port=REDIS_PORT, decode_responses=True)
print('Worker started, connecting to', REDIS_HOST)


while True:
    try:
        # BRPOP blocks until an item is available
        item = r.brpop(LIST_NAME, timeout=5)
        if item:
            # item is (list_name, value)
            value = item[1]
            print('Processing', value)
            # simulate processing
            time.sleep(2)
            print('Done', value)
        else:
            # nothing to do, sleep to avoid tight loop
            time.sleep(1)
    except Exception as e:
        print('Worker error:', e)
        time.sleep(2)

# Dockerfile.worker
FROM python:3.11-slim
WORKDIR /app
COPY worker.py .
RUN pip install --no-cache-dir redis
CMD ["python","/app/worker.py"]

By default if we create the image, it will be in our local registry and Minikube won’t see it. To solve this problem we can enable an addon called registry which will allow us to create a registry in Minikube.

minikube addons enable registry

We need to do a port-forward to forward the data to the registry:

kubectl port-forward -n kube-system service/registry 5000:80

And now, in other terminal to not terminate our tunnel, we need to build and push the image so it can be used within the cluster:

docker build -t keda-worker:latest -f Dockerfile.worker .
docker tag keda-worker:latest localhost:5000/keda-worker:latest
docker push localhost:5000/keda-worker:latest

And now we need to create the deployment of our service using the brand new image:

# worker-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: keda-worker
  labels:
    app: keda-worker
spec:
  replicas: 0 # start with 0 so we can see KEDA scale up from zero
  selector:
    matchLabels:
      app: keda-worker
  template:
    metadata:
      labels:
        app: keda-worker
    spec:
      containers:
      - name: worker
        image: localhost:5000/keda-worker:latest
        imagePullPolicy: Always
        env:
        - name: REDIS_HOST
          value: "redis"
        - name: REDIS_PORT
          value: "6379"
        - name: LIST_NAME
          value: "job-queue"
        resources:
          requests:
            cpu: "50m"
            memory: "64Mi"
          limits:
            cpu: "200m"
            memory: "256Mi"

Please, pay attention that we stated that we want a total of 0 replicas since the design of this is to only run when Keda allows it, saving us computing time and resources in our cluster.

kubectl apply -f worker-deployment.yaml

Create the KEDA ScaledObject for Redis List

Now that we have Redis ready to have message and our service ready to start reading those messages when it’s needed, we need to create a ScaledObject which will tell our service when it’s time to work, create instances and do its job.

# scaledobject-redis.yaml
apiVersion: keda.sh/v1alpha1
kind: ScaledObject
metadata:
  name: keda-worker-scaledobject
  labels:
    app: keda-worker
spec:
  scaleTargetRef:
    name: keda-worker
  pollingInterval: 5 # how often KEDA checks Redis (seconds)
  cooldownPeriod: 30 # how long to wait after scale down before next check
  minReplicaCount: 0
  maxReplicaCount: 10
  triggers:
  - type: redis
    metadata:
      address: "redis.default.svc:6379"
      listName: "job-queue"
      listLength: "5" # scale target: number of items -> triggers scale
      activationListLength: "1" # minimum backlog to activate scaling

Fields explained:

scaleTargetRef.name — the Deployment the ScaledObject controls (kedaworker).
pollingInterval — how often KEDA will query Redis.
minReplicaCount /maxReplicaCount — limits for scaling.
triggers — an array of trigger definitions. Here we use the redis scaler.
listLength is the target backlog size that will cause KEDA to adjust replicas (KEDA converts this into HPA metrics internally).
activationListLength prevents scaling up until backlog is at least that value.

Please, pay special attention at triggers.type since that value is unique for the kind of job we are doing. Keda provides us with an extensive list of different triggers we can use depending on what we want to observe in order to scale our services. You can have a complete list at their official site.

Keda and Redis are on different namespaces on our cluster, when specifying the address make sure you are pointing correctly to Redis. If you don’t use default namespace as I did, it will be different than redis.default.svc:6379

kubectl apply -f scaledobject-redis.yaml

Producer Cronjon to generate load

Finally, we are going to create a cronjob that will just generate some load to replicate a real user, and will just push a message to redis every minute so we can emulate the whole flow automatically and don’t hit any button neither waiting for an user.

# producer-cronjob.yaml
apiVersion: batch/v1
kind: CronJob
metadata:
  name: job-producer
spec:
  schedule: "*/1 * * * *"
  jobTemplate:
    spec:
      template:
        spec:
          restartPolicy: Never
          containers:
          - name: producer
            image: redis:7.0-alpine
            command: [ "sh", "-c" ]
            args:
            - |
              now=$(date +%s)
              echo "Producing job-$now"
              redis-cli -h redis rpush job-queue job-$now
              sleep 1

kubectl apply -f producer-cronjob.yaml

Observe KEDA scaling in action

For this purpose I have splited my terminal into 3 sections, so I can see everything at one glance. First I have to sections of the same size: right and left.

On the right size I will be running the logs of the Scaled Object to see how it’s being triggered everytime it sees there is 1 or more messages in the queue

kubectl logs -f -n keda keda-operator-f948b6c4-ln9ch

And then the left side I will have it splitted into two parts again. In the upper part I will be checking how many messages do I have on the list

watch 'kubectl exec -it deploy/redis -- redis-cli llen job-queue'

And at the botton I will be watching the number of pods from my deplotments

watch 'kubectl get deploy'

There we will be able to see how every minute the list has a new message, a pod of the worker is being created and the message is deleted. Reading all the logs in the right side.

By this way, we could have a service that only will be running when it’s needed. But also, this can be replicated and configured to just scale up or down services based on some triggers to ensure we are always giving the desired availability and reliability.

Clean up resources

kubectl delete -f producer-cronjob.yaml
kubectl delete -f scaledobject-redis.yaml
kubectl delete -f worker-deployment.yaml
kubectl delete -f redis-deployment.yaml
helm uninstall keda -n keda
kubectl delete namespace keda

You can see and download all the code on GitHub https://github.com/JoaquinJimenezGarcia/LearningKeda

La entrada Introduction to KEDA: Event-Driven Autoscaling for Kubernetes se publicó primero en CloudArch.

🧠 Run Your Own LLM Locally with Ollama and Docker

joaquinjimenezgarcia — Thu, 06 Nov 2025 22:29:39 +0000

In the last few years, large language models (LLMs) have become the brain behind many modern tools — from ChatGPT to Gemini and Claude. They help us code faster, summarize text, and even generate entire articles.
But what if you could run one of these models on your own machine, completely offline, without sending a single byte of your data to the cloud?

That’s exactly what Ollama allows you to do.

In this post, I’ll show you how to deploy your own LLM locally using Ollama on Docker, step by step — from installation to using it via API. We’ll also explore why it can be a game-changer for privacy, experimentation, and control.

Why Run an LLM Locally?

While cloud-based LLMs like ChatGPT or Gemini are powerful and easy to use, they come with trade-offs:

Data Privacy: Anything you send to those services is processed in the cloud. Running your own model locally ensures that all your prompts, code, and data stay on your machine.
Customization: You can tweak system prompts, memory, or even fine-tune models without limitations.
Offline Access: No internet? No problem. You can still use the model.
Cost Control: No API fees or subscriptions — just your local hardware doing the work.

This approach is perfect for developers, researchers, and hobbyists who want to experiment safely with AI on their own terms.

What Is Ollama?

Ollama is a lightweight runtime that lets you run open-source LLMs (like Llama 3, Mistral, Phi, or Gemma) with a single command.
It exposes a REST API compatible with the OpenAI format, meaning you can integrate it easily with existing tools or scripts.

Think of it as “Docker for models” — you pull, run, and interact with them locally.

Requirements

Before starting, make sure you have:

Docker installed (docker --version)
At least 8 GB of RAM (16 GB recommended)
Disk space: models range from 2 GB to 15 GB
Optional: NVIDIA GPU (for better performance)

Step 1: Run Ollama in Docker

Open a terminal and pull the official Ollama image:

docker pull ollama/ollama

Then start the container:

docker run -d \
  --name ollama \
  -v ollama:/root/.ollama \
  -p 11434:11434 \
  ollama/ollama

The volume ollama:/root/.ollama stores your downloaded models.
The port 11434 exposes Ollama’s REST API locally.

If you have an NVIDIA GPU, add --gpus=all to use hardware acceleration.

Step 2: Pull a Model

Once the container is up, let’s download a model.
For this example, we’ll use Mistral, a solid open-source model known for good reasoning and small size (~4 GB):

docker exec -it ollama ollama pull mistral

You can also try Llama 3 or Gemma later.

Check your installed models:

docker exec -it ollama ollama list

Step 3: Chat in the CLI

Start a local chat session:

docker exec -it ollama ollama run mistral

Example:

>>> Hello, what can you do?
I can summarize text, answer questions, or help you write code — all locally on your machine!

To exit, press Ctrl + C.

Step 4: Use the API

Ollama exposes an endpoint compatible with OpenAI’s API at http://localhost:11434/api/generate.

Let’s test it with curl:

curl http://localhost:11434/api/generate -d '{
  "model": "mistral",
  "prompt": "Write a haiku about Docker."
}'

You’ll get a JSON response similar to:

{"response":"Containers afloat / Isolation in motion / Cloud in a small box"}

Step 5: Connect from Python

You can even use the OpenAI client library — just point it to Ollama’s local endpoint:

pip install openai

Then create a small Python script:

from openai import OpenAI

client = OpenAI(base_url="http://localhost:11434/v1", api_key="ollama")

response = client.chat.completions.create(
    model="mistral",
    messages=[
        {"role": "system", "content": "You are a helpful assistant."},
        {"role": "user", "content": "Explain what Docker is in one sentence."}
    ]
)

print(response.choices[0].message.content)

Run it, and you’ll see the response generated locally — no external API involved.

Best Practices

Keep models on a dedicated volume: This avoids re-downloading large files every time you restart Docker.
Clean unused models: docker exec -it ollama ollama rm
Optimize with GPU: Ollama automatically uses GPU if available (CUDA or Metal).
Stay offline: If you want full privacy, disable internet access for the container. The model works entirely locally.
Monitor resources: Some models can use several GBs of RAM — use docker stats to watch usage.

Which Model Is 100% Private?

If privacy is your top priority, I recommend Mistral 7B:

Open-source and licensed for local use
Excellent performance on general tasks
Does not send data anywhere
Works well even without GPU
Around 4 GB on disk

You can pull it with:

docker exec -it ollama ollama pull mistral

This model runs entirely on your machine — no telemetry, no cloud, no data collection.

Bonus: Expose Ollama on Your Local Network

If you want to connect from another device on your LAN (e.g. from a laptop or tablet), run:

docker run -d \
  --name ollama \
  -v ollama:/root/.ollama \
  -p 0.0.0.0:11434:11434 \
  ollama/ollama

Then access it from another device using your local IP, e.g.:

http://192.168.1.100:11434/api/generate

Conclusion

Running an LLM locally gives you control, privacy, and freedom.
With Ollama on Docker, you can deploy models like Mistral or Llama 3 in minutes, use them offline, and even integrate them into your own tools or scripts.

No subscriptions, no data leaks — just you, your machine, and your AI.

La entrada 🧠 Run Your Own LLM Locally with Ollama and Docker se publicó primero en CloudArch.

Monitoring Docker with Prometheus: Gain Full Visibility into Your Containers

joaquinjimenezgarcia — Wed, 03 Sep 2025 16:54:29 +0000

Introduction

As organizations increasingly rely on containerized applications, ensuring their performance, stability, and reliability becomes a critical task. Docker makes it easy to package and deploy applications, but without proper monitoring, you may miss vital insights into how your containers are behaving. Issues such as resource exhaustion, unexpected crashes, or networking bottlenecks can quickly escalate if left unnoticed.

This is where Prometheus, an open-source monitoring and alerting toolkit, comes into play. Prometheus is designed to collect, store, and query time-series metrics, making it an excellent fit for containerized environments. When paired with Docker, it gives you the ability to:

Track resource usage (CPU, memory, disk, network) of your containers in real time.
Detect and troubleshoot performance bottlenecks before they affect users.
Enable alerts for abnormal behavior or failures.
Provide historical data to help understand trends and plan for scaling.
Integrate seamlessly with visualization tools such as Grafana for clear, actionable dashboards.

By setting up Prometheus to monitor Docker, you establish a foundation for observability that not only improves day-to-day operations but also builds confidence in your system’s resilience. In this post, we will walk through how to configure Prometheus to collect Docker metrics and show you how this setup can be the backbone of a reliable monitoring strategy.

Getting our Prometheus up and running

Nowadays, getting a Prometheus instance up and running is simpler than it sounds. Thanks to Docker itself we can get our instance deployed and ready to be queried in seconds. Let’s see an example of a docker-compose file.

# docker-compose.yml
version: "3.8"

services:
  prometheus:
    image: prom/prometheus:latest
    container_name: prometheus
    restart: unless-stopped
    ports:
      - "9090:9090"
    volumes:
      - ./prometheus.yml:/etc/prometheus/prometheus.yml:ro
      - prometheus_data:/prometheus

volumes:
  prometheus_data:

We can create also a small configuration for starting collecting Prometheus own metrics

# prometheus.yml
global:
  scrape_interval: 15s

scrape_configs:
  - job_name: "prometheus"
    static_configs:
      - targets: ["localhost:9090"]

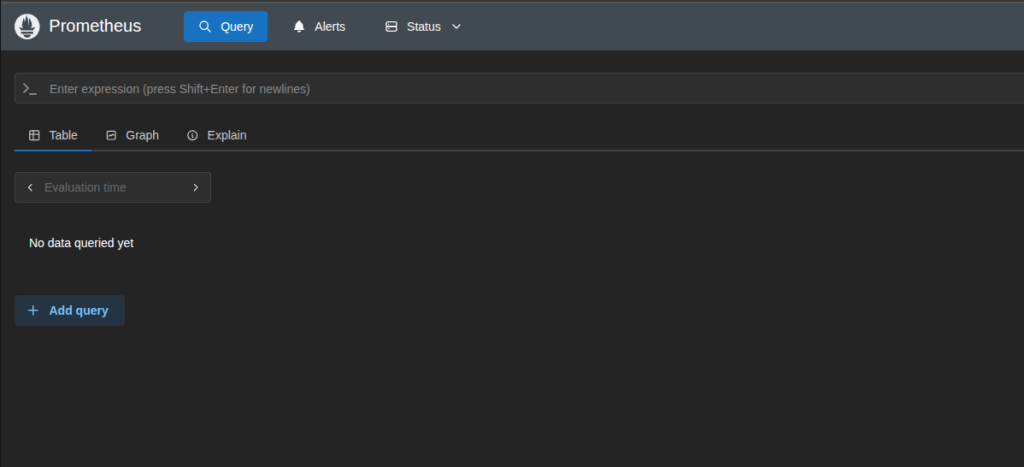

Now if we run docker compose up -d we will have our instance serving traffic on port 9090

$ docker ps

CONTAINER ID   IMAGE                    COMMAND                  CREATED         STATUS         PORTS                                         NAMES
6416f7540370   prom/prometheus:latest   "/bin/prometheus --c…"   9 seconds ago   Up 9 seconds   0.0.0.0:9090->9090/tcp, [::]:9090->9090/tcp   prometheus

Preparing Docker for exporting the metrics

Now it’s important to understand that we are gonna monitor docker itself, not the applications running with Docker.

Docker has a new feature to expose metrics on Prometheus-like format of the Docker server without being force to expose the whole Docker API, which is a win on security. To do that, we need to enable metrics-addr: on the deamon.json.

Thanks to that, Prometheus will be able to read and store our metrics.

# /etc/docker/daemon.json
{
  "metrics-addr": "0.0.0.0:9323"
}

After adding that, we will need to restart docker.

Now that we are exposing the metrics, we would be able to see them on the specified port and /metrics path

$ curl localhost:9323/metrics

# HELP builder_builds_failed_total Number of failed image builds
# TYPE builder_builds_failed_total counter
builder_builds_failed_total{reason="build_canceled"} 0
builder_builds_failed_total{reason="build_target_not_reachable_error"} 0
builder_builds_failed_total{reason="command_not_supported_error"} 0
builder_builds_failed_total{reason="dockerfile_empty_error"} 0
builder_builds_failed_total{reason="dockerfile_syntax_error"} 0
builder_builds_failed_total{reason="error_processing_commands_error"} 0
builder_builds_failed_total{reason="missing_onbuild_arguments_error"} 0
builder_builds_failed_total{reason="unknown_instruction_error"} 0
# HELP builder_builds_triggered_total Number of triggered image builds
# TYPE builder_builds_triggered_total counter
builder_builds_triggered_total 0
# HELP engine_daemon_container_actions_seconds The number of seconds it takes to process each container action
# TYPE engine_daemon_container_actions_seconds histogram
engine_daemon_container_actions_seconds_bucket{action="changes",le="0.005"} 1
engine_daemon_container_actions_seconds_bucket{action="changes",le="0.01"} 1
engine_daemon_container_actions_seconds_bucket{action="changes",le="0.025"} 1
engine_daemon_container_actions_seconds_bucket{action="changes",le="0.05"} 1
engine_daemon_container_actions_seconds_bucket{action="changes",le="0.1"} 1
engine_daemon_container_actions_seconds_bucket{action="changes",le="0.25"} 1
engine_daemon_container_actions_seconds_bucket{action="changes",le="0.5"} 1
engine_daemon_container_actions_seconds_bucket{action="changes",le="1"} 1
engine_daemon_container_actions_seconds_bucket{action="changes",le="2.5"} 1
engine_daemon_container_actions_seconds_bucket{action="changes",le="5"} 1
engine_daemon_container_actions_seconds_bucket{action="changes",le="10"} 1

Telling Prometheus where to scrape

Now that we have Prometheus up and running and Docker exporting its metrics, it’s time to tell Prometheus were to look and scrape for the metrics, so later we can navigate through them.

In order to tell Prometheus where are the metrics, we need to modify the prometheus.yml file that we created during the first steps. We need to create a new job and specify the address. Our file should look like this now:

# prometheus.yml

global:
  scrape_interval: 15s

scrape_configs:
  - job_name: "prometheus"
    static_configs:
      - targets: ["localhost:9090"]
  - job_name: 'DockerStats'
    static_configs:
      - targets: ['172.17.0.1:9323']

Note 1: Even on the curl command we specified the /metrics path, here it’s not needed. By default, Prometheus will scrape on that path.

Note 2: Please, be careful of the target. 127.0.0.1 or localhost won’t work. Metrics are exposed on the docker bridge network which you can get from network interface docker0
ip a | grep docker0
7: docker0: mtu 1500 qdisc noqueue state DOWN group default
inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0

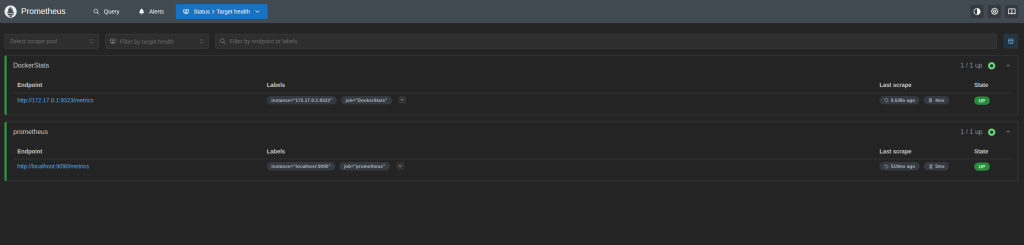

Now we cand go to our Prometheus instance and we will see our job scraping the metrics correctly on /targets path.

Next Steps

That enables us for a vast options to explore our metrics and get to know better the state of our Docker service. As for example, we could use Prometheus as a Dataset on Grafana to visualize all the stats and a more beautiful way, and even create alerts based on thresholds.

La entrada Monitoring Docker with Prometheus: Gain Full Visibility into Your Containers se publicó primero en CloudArch.

🔍 Observability: The Superpower Behind Healthy Servers 🚀

joaquinjimenezgarcia — Thu, 07 Aug 2025 13:11:16 +0000

Today we’re diving into a topic that can make or break your infrastructure—and your peace of mind: Monitoring, Observability, and Alerting.

You might think it’s “just for DevOps”, but in reality, these practices protect your users, your revenue, and yes… even your weekend sleep

What Is Observability (and Why Should You Care)?

Let’s break it down:

Monitoring tells you something is wrong.
Observability helps you understand why it’s wrong.
Alerting tells you as soon as it goes wrong.

Imagine your servers are a spaceship.
Monitoring is your dashboard—gauges, lights, speed indicators.
Observability is the system logs, black box, and mission control data that explain why the ship shakes when you press a button.
And alerting is the alarm that yells: “ Engine overheating!”

Without these, you’re flying blind. With them, you’re in control.

The 3 Pillars of Observability

Observability is powered by:

Metrics — Numbers that reflect system performance (CPU, RAM, latency, etc.)
Logs — Time-stamped records of system events.
Traces — Data that follows the path of requests across services (crucial in microservices).

Together, they give you deep visibility into how your system behaves—not just in a single spot, but across your entire stack.

Why It Matters

Let’s get real.

Without observability:

You know something broke, but not what, where, or why.
You spend hours digging through logs manually.
Customers get frustrated before you even realize there’s a problem.

With observability:

You detect issues earlier
You fix them faster
You prevent them from happening again
You reduce stress for your team and downtime for your users

Real Business Impact (with Data!)

Return on Investment

A 2023 Observability Forecast by New Relic showed that:

41% of organizations gained $1M+ in value per year from observability
Teams with mature observability were 2x more likely to resolve issues in under 30 minutes
Companies achieved up to 2x ROI on their observability investments

“We were able to go from 12 hours of downtime a month to almost zero.”
— DevOps Manager, financial sector

Outage Cost Reduction

Without observability:
Average outage cost = $9.83M/year
With full-stack observability:
Reduced to $6.17M/year

That’s a savings of $3.66M annually… just by having the right insights!

Faster Recovery = Happier Users

William Hill improved MTTR by 80%
Seven Network maintained 100% uptime during peak streaming
BlackLine cut cloud spend by $16M/year

Developer Experience

DAZN scaled to 5,000 daily deployments
Burnout dropped significantly—70% fewer incidents outside working hours

“We spend $80K/month on observability to protect $15M/year in revenue. One missed SLA costs us $250K.”
— Reddit /r/devops user

The Role of Smart Alerts

Monitoring is great, but alerting is what protects you from waking up to angry clients (or worse, a dead business).

But not all alerts are created equal.

Bad alerting = noisy Slack channels and alert fatigue
Good alerting = smart, context-aware signals that only fire when something really needs attention

Combine alerts with automation (like restarting services or scaling infrastructure) and you’re moving toward self-healing systems

A Real Example

Imagine your WordPress site is sluggish on mobile.
Monitoring says all systems are “green”.
But using traces, you discover that a mobile-specific JS file fails to load, causing timeouts.

Without observability? You’d be in the dark.
With it? You fix it in 5 minutes—before users even notice.

In Conclusion: Why Observability Is Essential

It’s not just about logs and dashboards.
It’s about trust, speed, resilience, and business success.

Catch problems early
Troubleshoot faster
Optimize cost and performance
Keep your team and customers happy
Innovate without fear

Observability is your infrastructure’s early warning system, diagnosis tool, and performance coach—all in one.

Want to See It in Action?

Check out our live Grafana Demo Dashboard where we simulate a WordPress-based Linux server running real-time fake data. Perfect for learning, showing clients, or testing dashboards.

Final Words

In the world of cloud-native infrastructure, ignorance is never bliss.

Investing in monitoring, observability, and alerting isn’t a nice-to-have…
…it’s the foundation of a stable, scalable, and successful system.

Until next time—stay observable, stay reliable, and may your error budgets be low!

La entrada

🔍 Observability: The Superpower Behind Healthy Servers 🚀

se publicó primero en CloudArch.

🩺 Docker HEALTHCHECK: Is Your App Really Alive Inside the Container?

joaquinjimenezgarcia — Thu, 05 Jun 2025 17:29:30 +0000

Running a container doesn’t mean your app is running fine. It might look like everything’s green from the outside… but inside? Your app could be frozen, stuck, or completely dead

Welcome to the world of Docker HEALTHCHECK — a super underrated feature that can make or break your reliability game. Today we’ll dive into:

Why HEALTHCHECK is essential
Real risks of skipping it
How Docker HEALTHCHECK Works
How to add it to your Dockerfiles
Two practical test cases (healthy vs unhealthy)

Why You Should Care

Let’s be honest. We often celebrate when our container is “up and running” — but that just means the process inside hasn’t crashed. It doesn’t tell us if:

The web server is responding
The database is reachable
Your app logic is frozen in a loop

Without a healthcheck, Docker assumes everything is okay. That’s dangerous in production, but also in dev: it gives you a false sense of security.

Healthchecks add real visibility — if your app doesn’t behave as expected, Docker will mark it as unhealthy, and tools like Docker Swarm or Kubernetes can act accordingly (restarts, scaling, etc.).

How Docker `HEALTHCHECK` Works — Under the Hood

When you add a HEALTHCHECK instruction in your Dockerfile, you’re telling the Docker engine to periodically run a command inside the container to determine its health status. Here’s how it works step by step:

1. The `HEALTHCHECK` Instruction

Example:

HEALTHCHECK --interval=10s --timeout=3s --retries=3 \
  CMD curl -f http://localhost:5000/health || exit 1

You’re defining:

Option	Meaning
`CMD`	The actual command to run inside the container. It must exit with `0` for healthy, non-zero for unhealthy.
`--interval`	How often to run the health check (default: 30s).
`--timeout`	How long to wait before the command is considered failed (default: 30s).
`--retries`	Number of consecutive failures before the container is marked `unhealthy` (default: 3).

2. Docker Monitors Using a Background Healthcheck Manager

When you start a container that has a HEALTHCHECK, Docker spawns a lightweight internal timer per container. This timer schedules and executes the CMD at the interval you define.

It’s all handled by the Docker daemon, which adds a health state entry to the container’s metadata.

3. Exit Codes Determine Health

Docker executes the healthcheck command inside the container, and uses its exit code to decide the result:

Exit Code	Meaning
`0`	Healthy
`1`	Unhealthy
`>1`	Unhealthy

CMD not found or fails to run? Still counts as unhealthy.

Docker tracks the consecutive failures, and once the retry limit is reached, the container is marked as unhealthy.

4. Status Stored in Container Metadata

You can view this with:

docker inspect --format='{{json .State.Health}}' [container_name] | jq

It shows:

Status: starting, healthy, or unhealthy
FailingStreak: how many times it failed consecutively
Log: recent healthcheck attempts with timestamps and outputs

Docker updates this metadata in real-time, and you can consume it via:

CLI (docker ps, docker inspect)
Docker Remote API (/containers/id/json)
Orchestration tools (like Swarm or Kubernetes)

5. No Magic, Just Smart Logic

Docker doesn’t inject anything magical into your container. It simply:

Executes the given command using the container’s existing binaries (like curl, wget, etc.)
Waits for the result
Updates internal health state

But this tiny mechanism becomes powerful when combined with:

Restart policies (--restart=on-failure)
Health-based load balancers (Swarm, K8s, Traefik)
Alerting systems (via Docker events or logs)

A Note About “Starting”

After the container boots, healthchecks begin after a default grace period of 0s (can be configured). During this period, the container status shows as:

"Status": "starting"

Once the first successful check is done, status becomes healthy. If it fails N times, it becomes unhealthy.

What Healthchecks DON’T Do

They do not stop or restart containers by themselves
They don’t directly affect container networking or DNS
They don’t send alerts unless you wire them to an external system

Adding a HEALTHCHECK to Your Dockerfile

It’s simple! Here’s the syntax:

HEALTHCHECK --interval=10s --timeout=3s --retries=3 CMD curl -f http://localhost:5000/health || exit 1

This checks every 10 seconds if the /health endpoint returns a success. If it fails 3 times in a row, the container becomes unhealthy.

Let’s Test It in Action

We’ll create two test containers:

Healthy App

This one includes a proper /health endpoint that always returns 200 OK.

Dockerfile:

FROM python:3.11-slim
ENV DEBIAN_FRONTEND=noninteractive
WORKDIR /app
COPY app.py .
# Install curl
RUN apt-get update && \
    apt-get install -y curl && \
    apt-get clean && \
    rm -rf /var/lib/apt/lists/*
RUN pip install flask
EXPOSE 5000
HEALTHCHECK --interval=10s CMD curl -f http://127.0.0.1:5000/health || exit 1
CMD ["python", "app.py"]

app.py:

from flask import Flask
app = Flask(__name__)

@app.route('/')
def home():
    return "All good!"

@app.route('/health')
def health():
    return "OK", 200

app.run(host="0.0.0.0", port=5000)

Build and run:

docker build -t healthy-app .
docker run -d --name healthtest healthy-app
docker inspect --format='{{.State.Health.Status}}' healthtest

$ docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
55e9b6f148a9 healthcheck_test "python app.py" 18 seconds ago Up 18 seconds (healthy) 0.0.0.0:5000->5000/tcp, [::]:5000->5000/tcp healthtest

You’ll get: healthy

Unhealthy App

Now let’s break the /health endpoint.

Modified app.py:

@app.route('/health')
def health():
    return "Error", 500

Build and run again:

docker build -t unhealthy-app .
docker run -d --name broken unhealthy-app
docker inspect --format='{{.State.Health.Status}}' broken

Result: unhealthy

You’ll also see the logs showing failed healthcheck attempts:

$ docker inspect broken | jq '.[].State.Health.Log'
[
  {
    "Start": "2025-06-05T19:26:07.323262742+02:00",
    "End": "2025-06-05T19:26:07.367595028+02:00",
    "ExitCode": 1,
    "Output": "  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current\n                                 Dload  Upload   Total   Spent    Left  Speed\n\r  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0\r  0     5    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0\ncurl: (22) The requested URL returned error: 500\n"
  },
  {
    "Start": "2025-06-05T19:26:17.369661511+02:00",
    "End": "2025-06-05T19:26:17.408770486+02:00",
    "ExitCode": 1,
    "Output": "  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current\n                                 Dload  Upload   Total   Spent    Left  Speed\n\r  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0\r  0     5    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0\ncurl: (22) The requested URL returned error: 500\n"
  },
  {
    "Start": "2025-06-05T19:26:27.409488914+02:00",
    "End": "2025-06-05T19:26:27.450101106+02:00",
    "ExitCode": 1,
    "Output": "  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current\n                                 Dload  Upload   Total   Spent    Left  Speed\n\r  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0\r  0     5    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0\ncurl: (22) The requested URL returned error: 500\n"
  },
  {
    "Start": "2025-06-05T19:26:37.450803223+02:00",
    "End": "2025-06-05T19:26:37.492805511+02:00",
    "ExitCode": 1,
    "Output": "  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current\n                                 Dload  Upload   Total   Spent    Left  Speed\n\r  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0\r  0     5    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0\ncurl: (22) The requested URL returned error: 500\n"
  }
]

What’s the Impact?

Scenario	Behavior
No HEALTHCHECK	Docker marks container as healthy by default
HEALTHCHECK passes	Container state = `healthy`
HEALTHCHECK fails	Container state = `unhealthy`

Why it matters:

Your orchestration tools (Swarm, Kubernetes, etc.) rely on this signal
You can detect failing containers early during development
It helps your CI/CD pipeline make smart decisions

Final Thoughts

A HEALTHCHECK is like a pulse check for your app
Just because a container runs doesn’t mean your service is okay.

Whether you’re in local development or scaling in production, a tiny HEALTHCHECK line in your Dockerfile can save you hours of debugging and nights of firefighting.

So go ahead — make your containers honest.

Docker HEALTHCHECK is:

A built-in mechanism that runs periodic commands inside containers
Based entirely on the exit status of your script or command
Tracked by the Docker daemon, with results exposed via CLI & API
Powerful when combined with orchestration, restarts, and alerts

Bonus tip: Want to auto-restart unhealthy containers?
Add this when running your container:

docker run --restart=on-failure ...

La entrada 🩺 Docker HEALTHCHECK: Is Your App Really Alive Inside the Container? se publicó primero en CloudArch.

🐳 Docker Monitoring: Keeping an Eye on Your Containers from the Start

joaquinjimenezgarcia — Wed, 04 Jun 2025 20:51:50 +0000

Monitoring Docker containers is crucial—not just in production, but right from the development phase. Early monitoring helps catch performance issues, resource bottlenecks, and unexpected behaviors before they escalate. While tools like Grafana and Prometheus are powerful, they might be overkill for smaller projects or initial stages. Let’s explore some lightweight alternatives to keep your containers in check without the overhead.

The Power of Built-in Tools

Docker provides built-in commands that offer valuable insights into container performance:

docker stats

This command displays real-time metrics for your running containers, including CPU usage, memoryconsumption, and network I/O.

docker logs

Access the logs of a container to monitor its output and diagnose issues.

These commands are straightforward and require no additional setup, making them ideal for quick checks during development.

Testing with docker.io/spkane/train-os:latest

To see these tools in action, let’s use the docker.io/spkane/train-os:latest image, which simulates system stress and is perfect for testing monitoring setups.

Run the container:

$ docker container run --rm -d --name stress docker.io/spkane/train-os:latest stress -v --cpu 2 --io 1 --vm 2 --vm-bytes 128M --timeout 60s

Unable to find image 'spkane/train-os:latest' locally
latest: Pulling from spkane/train-os
d4df0db66c89: Pull complete
19c5d5a1e2b2: Pull complete
2b25593057c7: Pull complete
0355d914b0bb: Pull complete
Digest: sha256:5acc35b4325d348c8ce6843f6751f62de6e83e518f94f5abe29d0f3ac0fb54be
Status: Downloaded newer image for spkane/train-os:latest
45e7f21918af3000a67d8f78bdfc6601d059160af9429304fca616b75e6036ac

Monitor with docker stats:

$ docker container stats stress --no-stream
CONTAINER ID NAME CPU % MEM USAGE / LIMIT MEM % NET I/O BLOCK I/O PIDS
b75e1302b035 stress 429.59% 119.9MiB / 31.07GiB 0.38% 5.82kB / 126B 0B / 0B 6

You’ll observe metrics like CPU and memory usage updating in real-time. We are using `–no-stream` to just have a brief output of the current state. Otherwise, it will be running being updated the values each few seconds.

View logs:

$ docker logs stress
stress: info: [1] dispatching hogs: 2 cpu, 1 io, 2 vm, 0 hdd
stress: dbug: [1] using backoff sleep of 15000us
stress: dbug: [1] setting timeout to 60s
stress: dbug: [1] --> hogcpu worker 2 [7] forked
stress: dbug: [1] --> hogio worker 1 [8] forked
stress: dbug: [1] --> hogvm worker 2 [9] forked

Accessing Metrics via Docker API

For more advanced monitoring or integration with custom tools, you can access container stats directly through the Docker API:

$ curl --no-buffer -X GET --unix-socket /var/run/docker.sock http://docker/containers/stress/stats | head -n 1 | jq

% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0{
"name": "/stress",
"id": "54370040079f3f7c3c6fd8608968050569b1141412c255949a0a72161f4a326a",
"read": "2025-06-04T19:45:21.220812324Z",
"preread": "0001-01-01T00:00:00Z",
"pids_stats": {
"current": 6,
"limit": 37968
},
"blkio_stats": {
"io_service_bytes_recursive": [
{
"major": 259,
"minor": 0,
"op": "read",
"value": 0
},
{
"major": 259,
"minor": 0,
"op": "write",
"value": 0
}
],

This command fetches real-time statistics for the stress container in JSON format, which can be parsed and utilized by various monitoring solutions. That helps us to build our own monitoring solutions too, so if we run a budget environment or want to have control over all our stack we can easily control how our containers behave.

Note that curl is not making a TCP/IP call, we are directly hearing over the unix socket exposed for docker --unix-socket /var/run/docker.sock. That socket exports throught the Docker API /stats/ all needed parameters.

Choosing the Right Monitoring Approach

Scenario	Recommended Approach
Development & Testing	`docker stats` and `docker logs`
Custom Integrations	Docker API via `curl`
Production & Large Deployments	Grafana, Prometheus, etc.

For small-scale applications or during development, Docker’s built-in tools are often sufficient. They provide immediate insights without the complexity of setting up external monitoring systems. However, as your application scales, integrating more robust solutions like Grafana and Prometheus becomes beneficial for long-term monitoring and alerting.

Conclusion

Monitoring doesn’t have to be complex. Starting with Docker’s native tools allows for quick and effective oversight of your containers. As your needs grow, you can seamlessly transition to more comprehensive solutions. Remember, the key is to implement monitoring early to ensure smooth and efficient container operations.

La entrada 🐳 Docker Monitoring: Keeping an Eye on Your Containers from the Start se publicó primero en CloudArch.

Helm Repositories: Your Gateway to Kubernetes Apps 🗂️⛵

joaquinjimenezgarcia — Tue, 08 Apr 2025 20:46:25 +0000

So you’ve installed Helm, taken your first breath in this world of Kubernetes package management, and you’re wondering… Now what? What makes Helm truly magical isn’t just that it simplifies your deployments — it’s where it gets its powers from: the Helm repository.

If Helm is the Kubernetes version of a package manager, then Helm repos are its treasure chests. And just like any good explorer, you’re going to need to know where to find the maps.

So… what is a Helm repo, really?

Let’s imagine you’re building a house in Kubernetes. Instead of crafting each brick by hand (writing all those YAMLs), you can order a ready-to-assemble kit. That kit? It’s called a Helm chart. And where do you get it from? A Helm repository.

A Helm repo is basically a collection of Helm charts — pre-packaged Kubernetes applications that are ready for deployment. These charts are stored in an online repository, which you can connect to and browse from your terminal.

Think of it like a Play Store or App Store, but for Kubernetes.

The Default Chart Repo: Bitnami & Friends

The Helm team maintains a default, stable repo full of widely-used applications: NGINX, MySQL, Prometheus, Grafana, WordPress… you name it. One of the most popular ones is from Bitnami, which packages and maintains a huge collection of up-to-date and secure charts.

But the real beauty is this: you can add any Helm repo to your local setup — official, third-party, or even your own private one.

Let’s get our hands dirty

Adding a Helm repo is as simple as a single command. For example, to add Bitnami’s public repository:

helm repo add bitnami https://charts.bitnami.com/bitnami

That’s it. You’ve just connected your Helm CLI to a vast world of applications.

Want to make sure everything’s in sync?

helm repo update

This command refreshes the list of available charts and their latest versions from all the repos you’ve added.

To check which repos you currently have on your machine:

helm repo list

It’ll show you a tidy little table with all your configured repositories. Nice and clean.

Exploring the Chart Library with `helm search`

Once you’ve added a repository — say Bitnami — and updated it, you’re probably thinking: “Cool… but what can I actually install?”

That’s where the magic of searching comes in.

You can use:

helm search repo wordpress

And Helm will scan through all your added repositories and list any charts that match the name “wordpress”. It’ll even show you the latest version and a short description — kind of like browsing a menu at a restaurant, but for apps in your Kubernetes cluster .

Want to see everything available from Bitnami? Just do:

helm search repo bitnami

And boom — a full buffet of deployable goodness.

This command is especially useful when you’re not quite sure what you’re looking for, or when you’re exploring new tools to add to your stack.

Installing Charts from Repos

Now comes the fun part. Let’s say you want to install WordPress in your Kubernetes cluster (because why not launch a blog while you’re launching containers? ).

Installing any chart is as easy as using the helm install command following with some parameters:

helm install

Once you’ve added Bitnami’s repo, you can run:

helm install my-wordpress bitnami/wordpress

Boom. Helm fetches the chart from the Bitnami repo, installs it into your cluster, and gives you all the necessary info to access it.

You don’t even need to download the chart locally unless you want to customize it (more on that in a future post ).

Behind the Scenes

When you install a chart from a repo, Helm does a few things:

It looks up the chart metadata in the repo index.
It pulls down a .tgz (tar.gz) package that contains all the YAML templates, values, and configuration.
It renders those templates with your values and sends the final manifests to Kubernetes.

The best part? You didn’t touch a single YAML file.

Final Thoughts

Getting familiar with Helm repos is a crucial step in mastering Helm — and honestly, it’s where the fun begins. You now have access to hundreds of production-grade Kubernetes apps, just a command away.

But don’t stop here.

Next, we’re going to explore how to customize these charts to suit your environment, your values, and your style (yes, Kubernetes can have style ).

Until then, try playing with a few different charts. Install Redis, launch a full monitoring stack with Prometheus + Grafana, or spin up your own Jenkins CI system — all in just a few keystrokes.

Your cluster will thank you.

Enjoying the series?
Make sure to follow, subscribe, or share this post with someone who still thinks Helm is just something you wear on a boat.
#Helm #Kubernetes #DevOps #CloudNative #K8s #InfrastructureAsCode #HelmCharts

La entrada Helm Repositories: Your Gateway to Kubernetes Apps 🗂️⛵ se publicó primero en CloudArch.

What is Helm? The Kubernetes Package Manager Explained for Beginners 🚀

joaquinjimenezgarcia — Tue, 08 Apr 2025 10:30:27 +0000

Welcome to the first post in our Helm series! Whether you’re a DevOps engineer, cloud enthusiast, or just getting started with Kubernetes, you’re about to discover a powerful tool that can make your life way easier: Helm.

In this post, we’ll dive into:

What is Helm?
What problems does it solve?
Key benefits of using Helm
How to install Helm (in just a few steps!)

Let’s jump right in!

What is Helm?

Imagine managing a complex application in Kubernetes — dozens of YAML files, multiple services, deployments, secrets, configs, and everything in between. It’s like assembling IKEA furniture without the manual.

Helm is here to be your manual.

It’s the package manager for Kubernetes — just like apt is for Ubuntu or yum is for CentOS, but made for the cloud-native world.

With Helm, you can:

Package your Kubernetes YAMLs into reusable templates (called Charts)
Deploy complex applications with a single command
Easily manage upgrades, rollbacks, and configurations

In short: Helm makes deploying to Kubernetes faster, simpler, and less error-prone.

What Problems Does Helm Solve?

Kubernetes is powerful, but managing it manually is like juggling flaming swords. Here are some real headaches Helm helps with:

1. Too many YAML files

Applications often require multiple resources: Deployments, Services, ConfigMaps, Ingresses, etc. Helm bundles them into one chart.

2. Hard-coded values

Editing the same YAML files over and over to change values (like image tags or environment settings)? Helm allows dynamic values with templates and variables.

3. No easy way to upgrade or rollback

With Helm, you can upgrade an app version and roll back instantly if something goes wrong.

4. App reuse across environments

Want the same app in dev, staging, and prod with just different configs? Helm makes it effortless.

Benefits of Using Helm

Helm isn’t just a nice-to-have — it’s a must-have for scalable, maintainable Kubernetes environments.

Here’s why:

• Saves Time

Automate and simplify deployments with one-liners.

• Improves Consistency

Avoid human error and deploy the same app across environments with confidence.

• Version Control Friendly

Helm charts can live in Git, making your infrastructure-as-code even more powerful.

• Easily Shareable

Share your charts with teammates or open source them for the community.

• Built-in Rollbacks

One bad deployment? Roll it back like it never happened.

How to Install Helm

Ready to get started? Installing Helm is quick and painless.

Step 1: Download the Helm Binary

For macOS:

brew install helm

For Linux:

curl https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3 | bash

For Windows:

Use Chocolatey or Scoop:

choco install kubernetes-helm

Step 2: Verify the Installation

helm version

You should see something like:

version.BuildInfo{Version:"v3.x.x", GitCommit:"...", ...}

Boom — you’re ready to helm your ship!

What’s Next?

In the next post, we’ll break down what a Helm Chart really is, how it’s structured, and how to create your very first one.

If you’re enjoying this series, don’t forget to:

Subscribe to the blog
Share this post with your DevOps squad
Leave a comment if you have questions or want a topic covered!

Until next time — keep it cloud-native!

La entrada What is Helm? The Kubernetes Package Manager Explained for Beginners 🚀 se publicó primero en CloudArch.

Concurrency vs. Parallelism in GoLang

joaquinjimenezgarcia — Mon, 13 Jan 2025 11:34:10 +0000

Concurrency vs. Parallelism in GoLang

Concurrency: GoLang allows you to execute multiple tasks apparently simultaneously. This is achieved through goroutines, which are lightweight functions that execute concurrently. The Go runtime is responsible for scheduling these goroutines on the available system threads, giving the illusion of parallelism.
Parallelism: Parallelism involves executing multiple tasks truly simultaneously, utilizing multiple processor cores. If you have a task that can be divided into independent subtasks, Go can leverage parallelism to accelerate execution.

Do goroutines run one by one or in parallel?

The short answer is: it depends.

One by one: If there are not enough resources (CPU cores, memory) or if the tasks are tightly coupled, goroutines will execute sequentially, one after another.
In parallel: If you have multiple cores available and the tasks are independent, the Go runtime will attempt to execute the goroutines in parallel, taking advantage of all available cores.

Is it possible to apply parallelism to save execution time?

Absolutely! GoLang is designed to facilitate concurrent and parallel programming. Here are some ways to take advantage of parallelism:

Goroutines: Create multiple goroutines to execute independent tasks.
Channels: Use channels to communicate and synchronize between goroutines.
WaitGroups: Use sync.WaitGroup to wait for all goroutines to finish before proceeding.
Parallel data processing: Divide large datasets into smaller chunks and process each chunk in a different goroutine.
Use parallelism libraries: Explore libraries like parallel that offer high-level functions for performing operations in parallel.

Simple example:

package main

import (
	"fmt"
	"sync"
	"time"
)

func main() {
	// Code block for sequencial execution
	t1 := time.Now()
	sequencial()
	t1f := time.Now()
	t1t := t1f.Sub(t1)
	fmt.Println("Sequencial took", t1t)

	// Code block for routines. It cna apply parallelism due to free CPU
	t2 := time.Now()
	parallelism()
	t2f := time.Now()
	t2t := t2f.Sub(t2)
	fmt.Println("Parallelism took", t2t)
}

func sequencial() {
	for i := 0; i < 5; i++ {
		fmt.Println("Execution", i)

		waitTime()
	}
}

func parallelism() {
	var wg sync.WaitGroup

	for i := 0; i < 5; i++ {
		wg.Add(1)
		fmt.Println("Execution", i)

		go waitTimeParallel(&wg)
	}
	wg.Wait()
}

func waitTime() {
	time.Sleep(5 * time.Second)
}

func waitTimeParallel(wg *sync.WaitGroup) {
	time.Sleep(5 * time.Second)
	wg.Done()
}

In this example, 5 goroutines are created that simulate independent tasks. By using sync.WaitGroup, it is ensured that the main program waits for all goroutines to finish before terminating.

If we take a close look to the execution of the output, we might see how we can take advantage of parallelism and run each task in a different CPU core, so the total execution time will be drastically lower. Since the task is just a 5-seconds counter, it will run everything at the same time, counting only 5 seconds. In the sequencial example we see how it runs each task one after one, counting 5 seconds per each task.

Important considerations:

Communication between goroutines: Channels are essential for coordinating work between goroutines.
Synchronization: Use sync.WaitGroup, mutexes, or semaphores to synchronize access to shared resources.
Deadlocks: Beware of deadlocks, which can occur when two or more goroutines are waiting for another to perform an action.
Overhead: Creating and managing many goroutines has a cost. Evaluate whether the benefit of parallelism justifies the overhead.

In summary:

GoLang provides you with powerful tools for leveraging concurrency and parallelism. By understanding the basic concepts and applying them correctly, you can write more efficient and scalable programs.

La entrada Concurrency vs. Parallelism in GoLang se publicó primero en CloudArch.

CloudArch

OpenSearch for SREs: The Open-Source Observability Powerhouse on Kubernetes

The Rise of the Open-Source Alternative: OpenSearch for the Modern SRE

Core Concepts for the SRE Toolkit

Getting Hands-On: Your Production-Lite OpenSearch Lab on Kubernetes

Prerequisites:

1. Initialize Minikube

2. Prepare Helm Repositories

3. Deploy OpenSearch & Dashboards (with a Password)

4. Deploy Sample Nginx App

5. Deploy Fluent Bit (The Log Shipper)

The Log Shipper: Why Fluent Bit?

The Anatomy of a Fluent Bit Pipeline

6. Automate ISM Policy & Index Pattern with a Kubernetes Job

Understanding the Automation: ISM & Index Patterns

7. Generate Some Nginx Traffic

8. Access OpenSearch Dashboards

Conclusion

Introduction to KEDA: Event-Driven Autoscaling for Kubernetes

What we are building

Prerequisites

Start a 3-node Minikube cluster

Install Helm

What we’re going to deploy (high level)

Redis Manifest

Worker code + Deployment

Create the KEDA ScaledObject for Redis List

Producer Cronjon to generate load

Observe KEDA scaling in action

Clean up resources

🧠 Run Your Own LLM Locally with Ollama and Docker

Why Run an LLM Locally?

What Is Ollama?

Requirements

Step 1: Run Ollama in Docker

Step 2: Pull a Model

Step 3: Chat in the CLI

Step 4: Use the API

Step 5: Connect from Python

Best Practices

Which Model Is 100% Private?

Bonus: Expose Ollama on Your Local Network

Conclusion

Monitoring Docker with Prometheus: Gain Full Visibility into Your Containers

Introduction

Getting our Prometheus up and running

Preparing Docker for exporting the metrics

Telling Prometheus where to scrape

Next Steps

🔍 Observability: The Superpower Behind Healthy Servers 🚀

What Is Observability (and Why Should You Care)?

The 3 Pillars of Observability

Why It Matters

Real Business Impact (with Data!)

Return on Investment

Outage Cost Reduction

Faster Recovery = Happier Users

Developer Experience

The Role of Smart Alerts

A Real Example

In Conclusion: Why Observability Is Essential

Want to See It in Action?

Final Words

🔍 Observability: The Superpower Behind Healthy Servers 🚀

🩺 Docker HEALTHCHECK: Is Your App Really Alive Inside the Container?

Why You Should Care

How Docker HEALTHCHECK Works — Under the Hood

1. The HEALTHCHECK Instruction

2. Docker Monitors Using a Background Healthcheck Manager

3. Exit Codes Determine Health

4. Status Stored in Container Metadata

5. No Magic, Just Smart Logic

A Note About “Starting”

What Healthchecks DON’T Do

Adding a HEALTHCHECK to Your Dockerfile

Let’s Test It in Action

Healthy App

Unhealthy App

What’s the Impact?

Final Thoughts

How Docker `HEALTHCHECK` Works — Under the Hood

1. The `HEALTHCHECK` Instruction

Exploring the Chart Library with `helm search`
